ROOT support

There is a seamless integration of CERN ROOT libraries, used for graphics/I/O inessential purposes only. Make automatically deduces, whether your system carries ROOT, and thereafter makes sure most programs will run regardless, though with different functionality.

For example, on a system with ROOT installed, cooling curve executable gives more extensive choice of console options:

> bin/project/Cooling/cooling_curve.out --help
usage: cooling_curve [OPTIONS]...

Evaluates surface temperature time dependency based on EoS

keyword arguments:
  --help, -h            : show this help
  --inputfile VALUE     : json input file path (required)
  --pdf_path VALUE      : pdf output file path (optional, default: Cooling.pdf)
  --rootfile_path VALUE : root output file path (optional, default: None)

Argparse powered by SiLeader

Therefore, even running the executable as is

bin/project/Cooling/cooling_curve.out --inputfile presupplied/APR4/RHMconfig.json

will not only produce the console tabulation, but also a pdf preview Fig. 1.

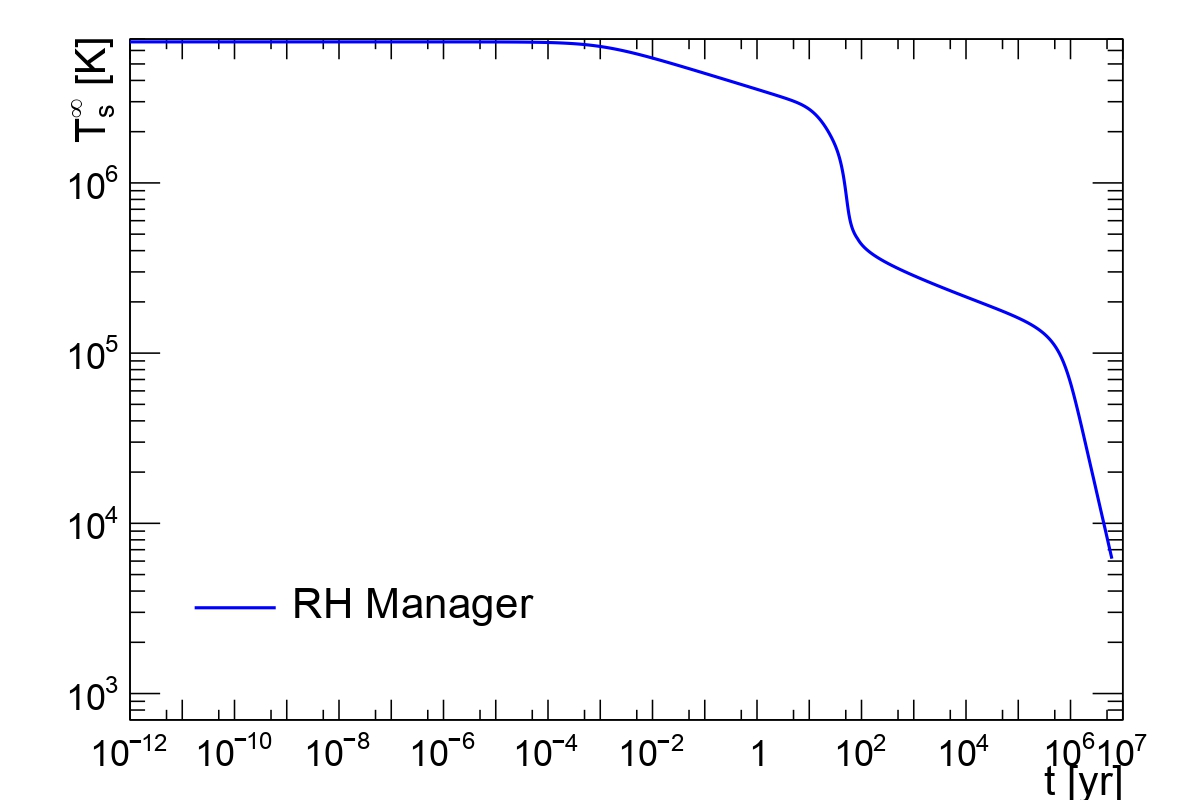

Fig. 1 Cooling curve from RHM with presupplied settings. \(2M_{\odot}\), APR4 EoS

Another advantage is that ROOT allows for quick I/O with high-level graphic objects, like TGraph. If you provide project/Cooling/nonequilibrium_profiles.cxx with --rootfile_path value, not only will it produce a preview Fig. 2,

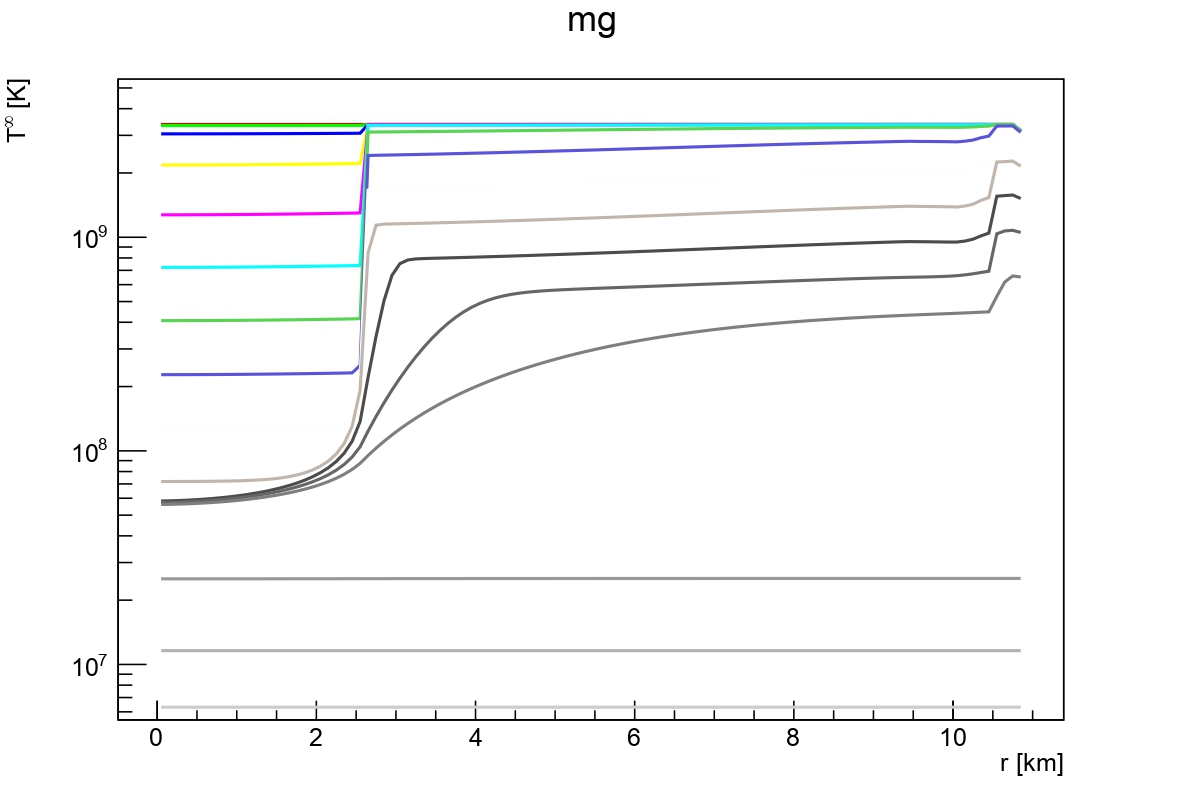

Fig. 2 Cooling profile evolving with time from RHM with presupplied settings. \(2M_{\odot}\), APR4 EoS

but this same preview will be saved to a ROOT file, which can be later opened and manipulated Fig. 3.

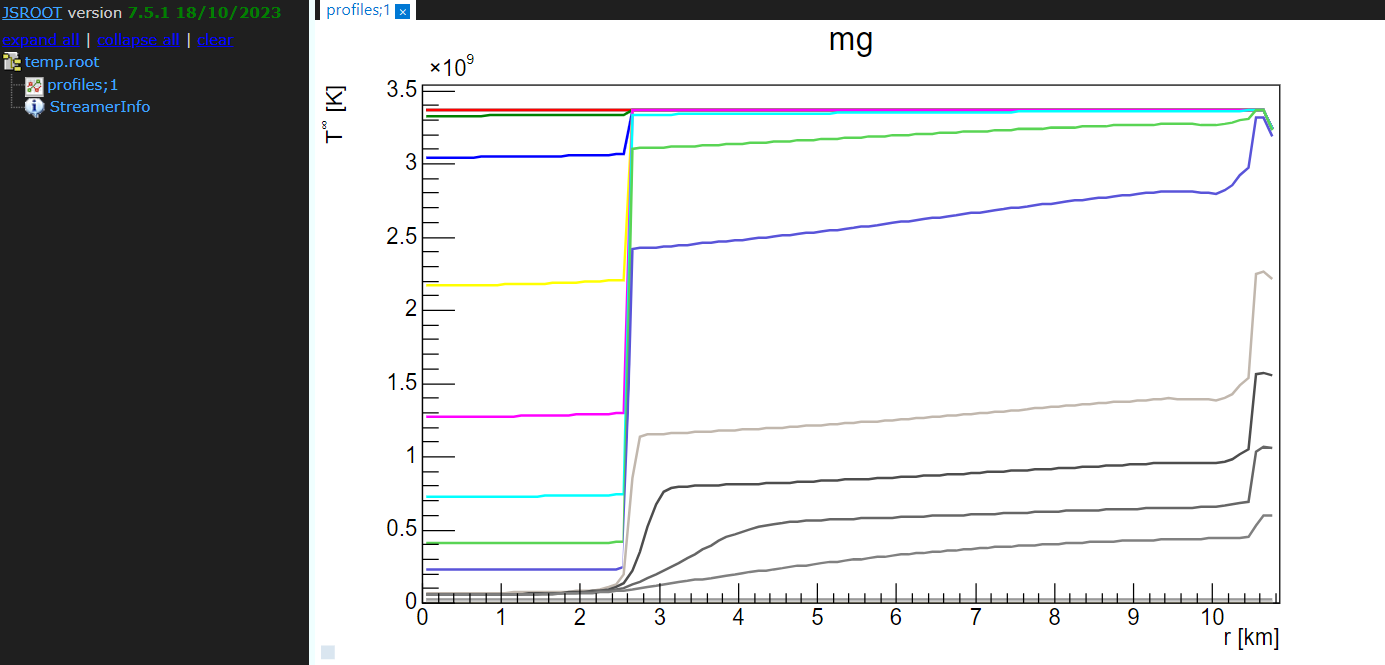

Fig. 3 ROOT file preview for nonequilibrium profile with same settings.

Contents of ROOT files vary between programs and occasionally running options, but never exceed the maximum verbosity of the console output.

Be advised that some programs may not have ROOT-free executable available, however we make sure that key functionality is there regardless. In case you attempt to compile such a program without ROOT, make will explicitly notify you about it.
